This is a unique lighting kit desgned for large hubs and dual hubs.  The kit has two Cluster Lights with each light having three independantly foldable light panels that can be directionaly aimed.  In a dual hub, one light can be placed in each hub for maximum lighting.  Combined with the rotary dimmer, this allows you to dial in the exact lighting that you need.

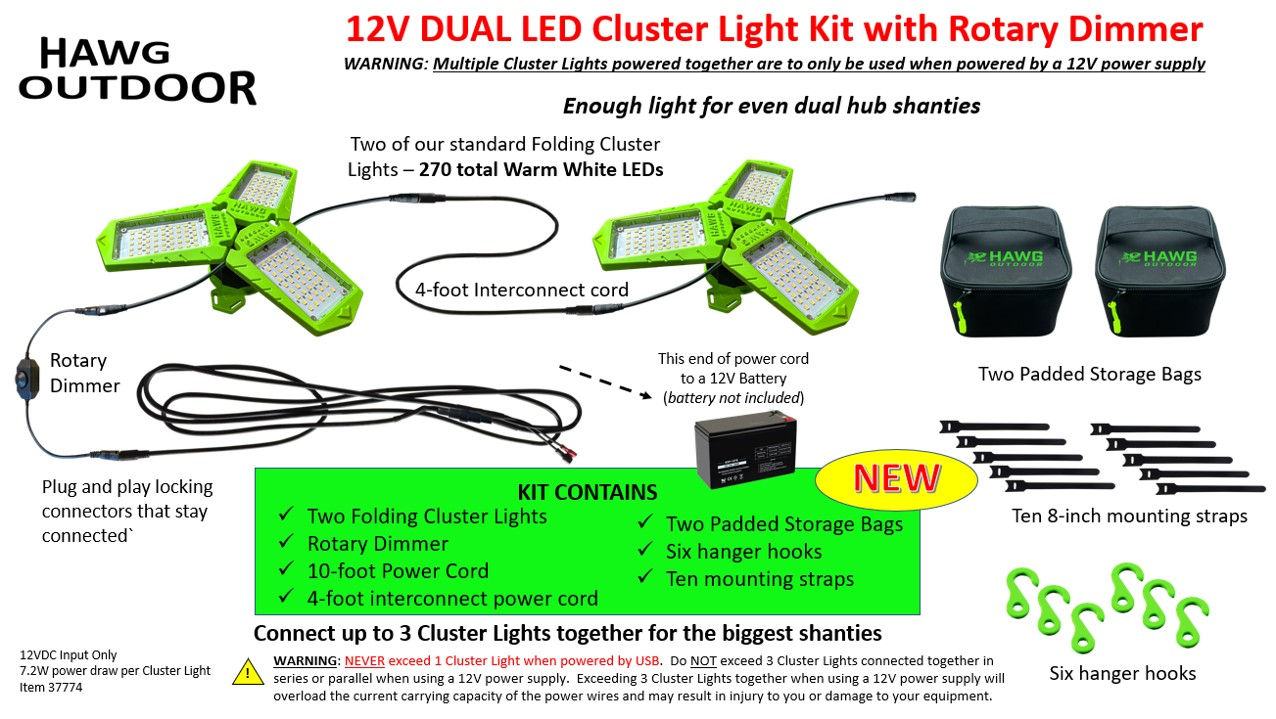

Installs in your shanty in a minute or two.  All you will need to power this kit is a 12V DC power source such as a sealed lead acid battery or power box.  The kit includes two 3-panel folding LED lights, six hanger hooks, ten mounting straps, a heavy duty 10 foot power cord,  a rotary dimmer, a 4-foot interconnect cord, and two padded storage bags for you to store the lights and all the components in.  If additonal distance is needed between the lights, just purchase our 9-foot interconnect so that the lights can be spaced 9 feet apart.



If you want even more light, you can connect an additional Cluster Light together for a maximum of three lights.  Simply purchase an extra Cluster Light Kit.


KEY FEATURES

• 2 Cluster Lights with each Cluster Light having 3 independantly folding light panels with 45 warm white LEDs per panel.  Each light delivers about 1000 lumens for a total of 2000 lumens.

• Ability to aim each panel in different directions for your specific lighting needs

• Rotary dimmer switch with OFF position allows you to get the perfect light ouput.

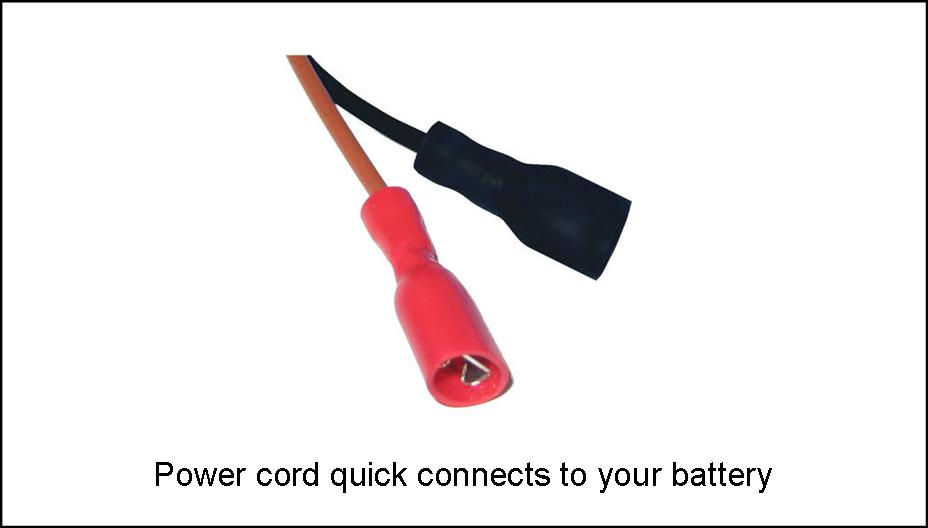

• 10 foot long power cord with 18AWG wires and an extra outer jacket for protection against tough use and wear.

• Folding light compoments are molded out of tough glass filled polymers, and uses stainless steel hardware.

• Installs in seconds to your support bars.  Take down is equally as fast.

• 6 hanger hooks to hang the lights, and ten 8-inch long hook and loop straps for strapping the power cord and interconnect cord to your ice shanty's support bars to keep them out of the way.



Each Cluster Light draws around 0.6A when powered by a 12V power source.   We recommend a minimum of a 9Ah battery for about 6 hours of use while set at the highest light intensity.



NOTE - Connect up to 3 Cluster Lights either in series using our interconnect power cords avalable in either 4-foot or 9-foot lengths.  You can also connect up to three Cluster Lights in parallel using our 1 x 3 Power Splitter Cord combined with our 4 or 6-foot interconnect cords.  A diagram of how to do this can be found on our site.



WARNING:  Exceeding 3 Cluster Lights when connected together in series or in parallel will overload the current carrying capacity of the dimmer wires and may result in injury to you or damage to your equipment.

12V DUAL Folding LED Cluster Light Kit With Dimmer

SKU: 37774
$64.99Price
